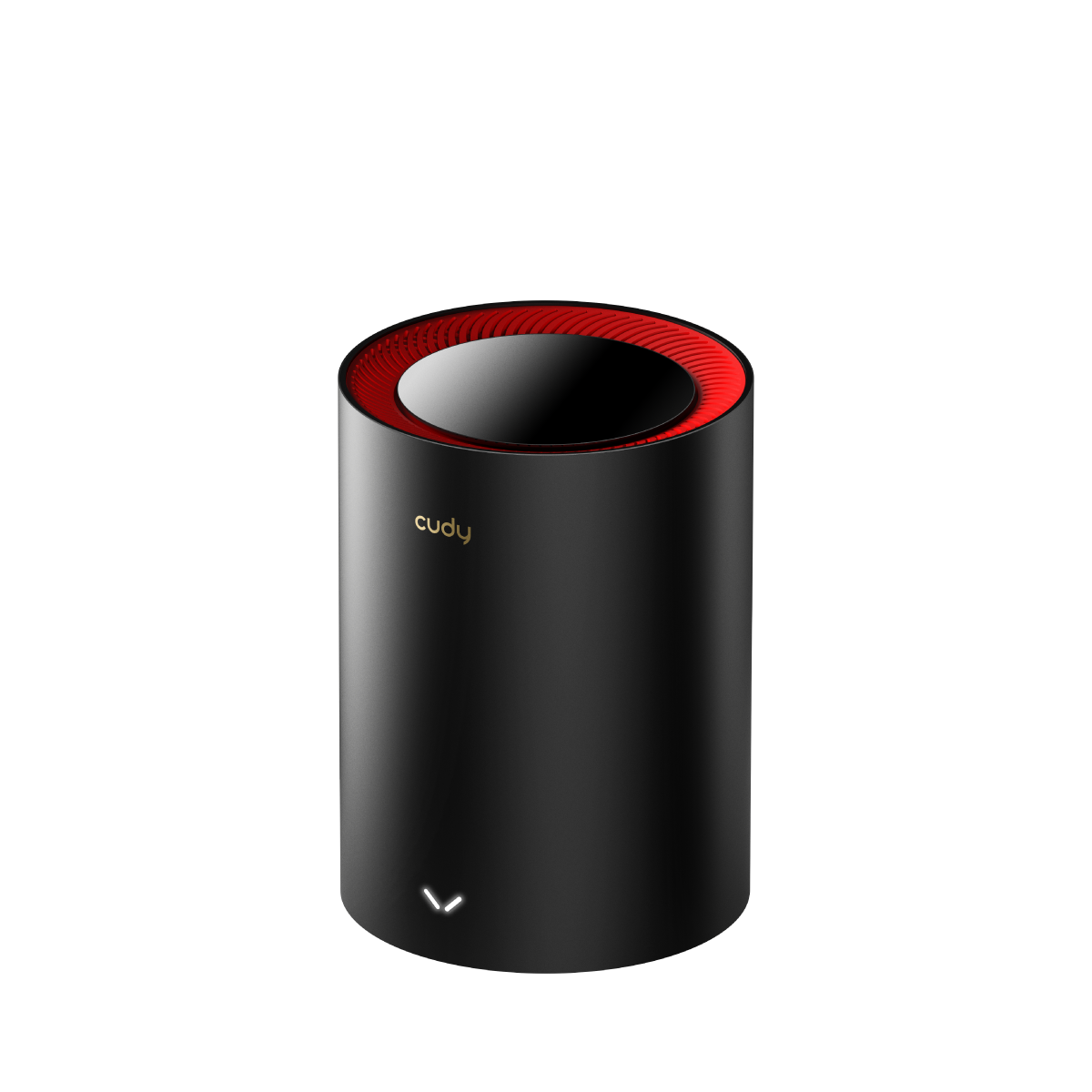

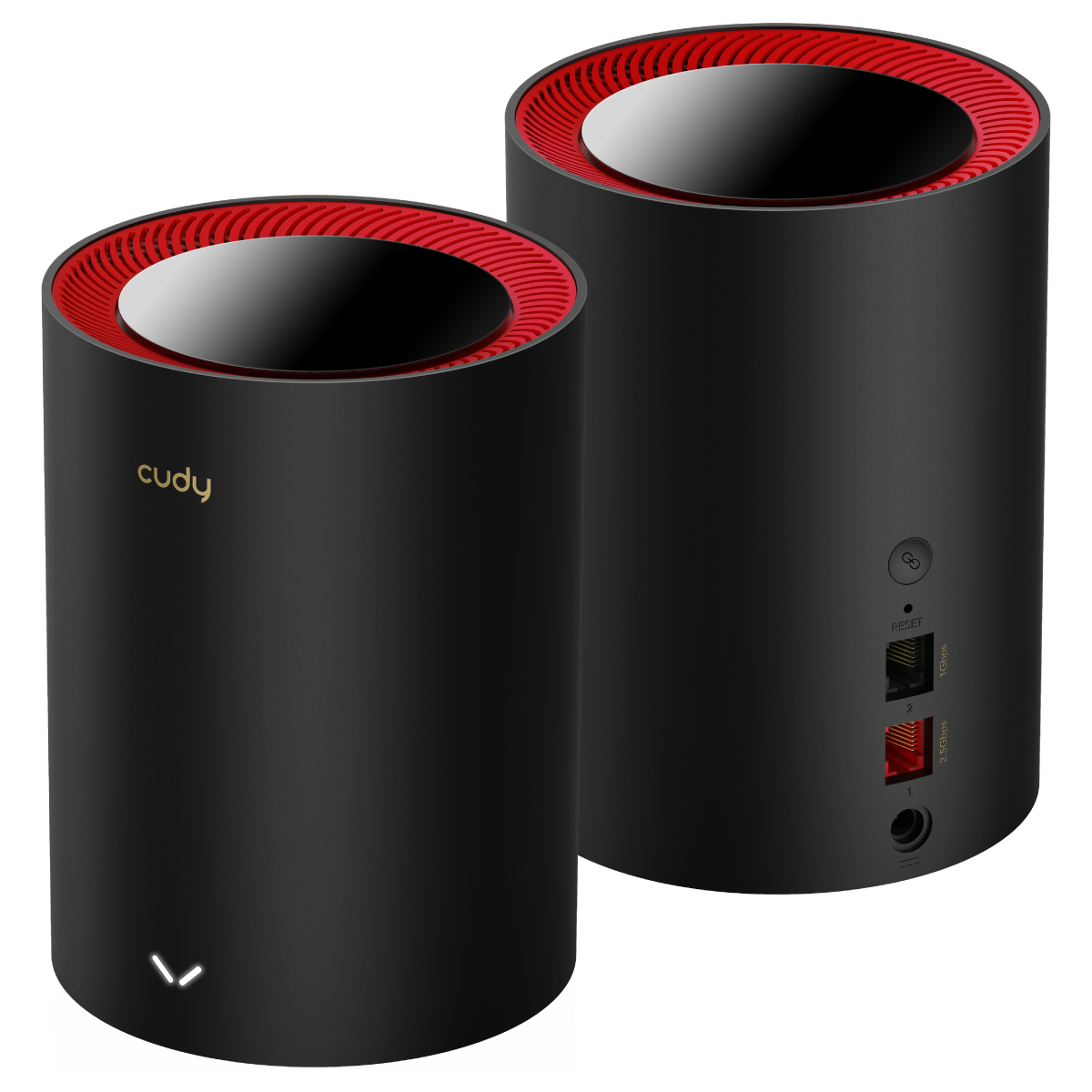

Cudy AX3000 2.5G Mesh Wi-Fi 6 System

(3 Pack) A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

Status:In stock

Product Code:PRD-SMY-00096

Brand:Cudy

17,000 ৳

Quantity

- +

Compare color

Ask a question

Delivery & Return

Cudy AX3000 2.5G Mesh Wi-Fi 6 System

Hardware Specs

Model Version
M3000 1.0
CPU
CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Flash/ROM	128 MB (1 Gbit) NAND
DDR/RAM	256 MB (2 Gbit) DDR3
Wireless
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	5× Internal
FEM or PA/LNA	5 GHz: 3× Internal 2.4 GHz: 2× Internal
Beamforming	True
Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference	2 Pack: 200 m² (2100 sq ft) 3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

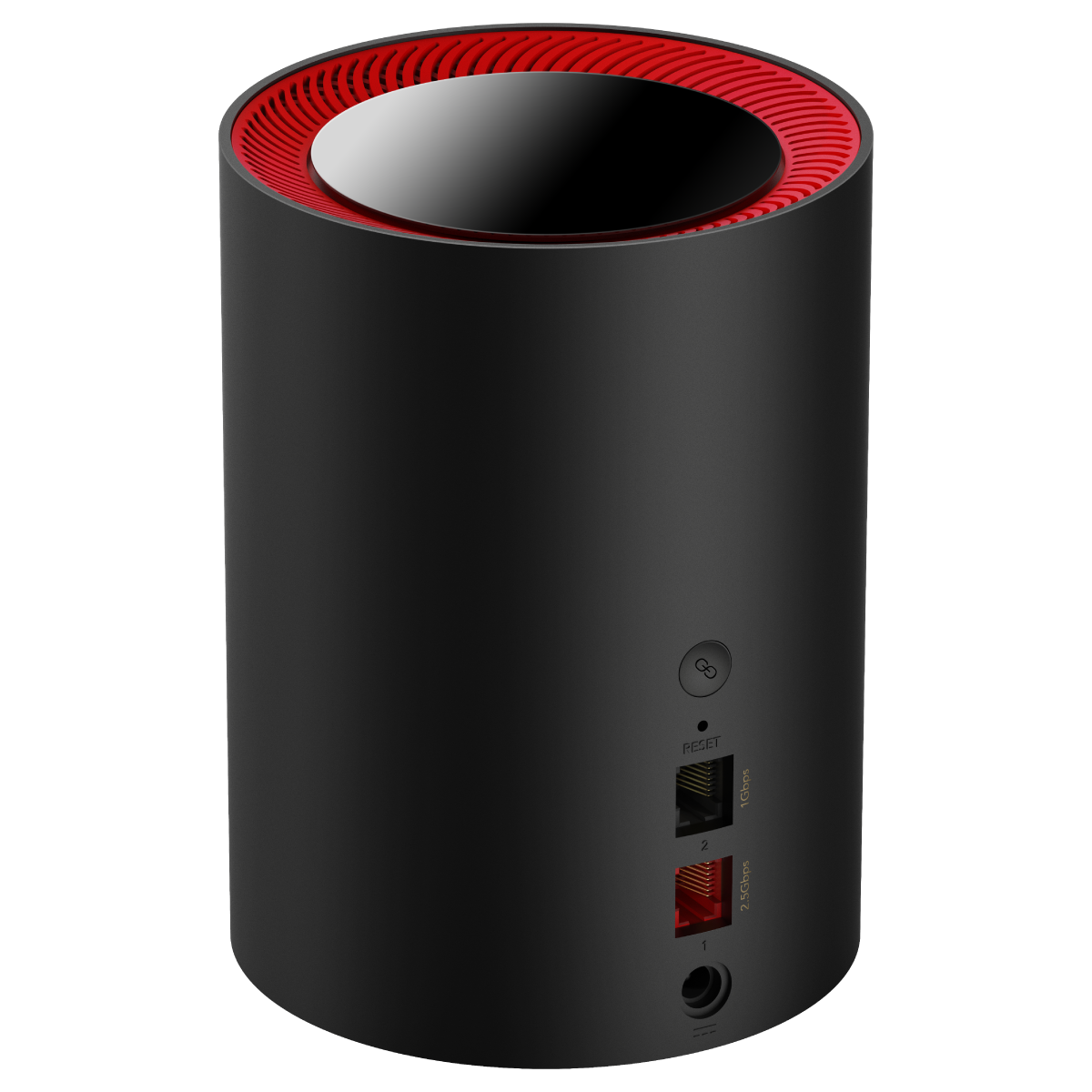

Interfaces
2.5G RJ45 Ports	1
Gigabit RJ45 Ports	1
Ethernet Notes	The 2.5G port is the WAN port, the Gigabit port is LAN port
LED	System Speed/Link/ACT of Ethernet Port
Physical Buttons	WPS Button Reset Button
Power Input	DC Jack
Power
Power Methods	DC
DC Input	12V 1A
Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Max Power Consumption (W)	11.5W
Idle Power Consumption (W)	4.2W
Reliability
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Mechanical
Installation	Desktop
Dimension	Φ110×154.5 mm Φ4.33×6.08 inches
Product Weight	360 g (12.7 oz.)
Package Content
M3000 Power Adapter Ethernet Cable Installation Guide
Ordering Information
Retail Package Weight	1-Pack \| EU / US: 680 g (23.99 oz.) 3-Pack \| EU / US: 1500 g (52.91 oz.) 2-Pack \| EU / US: 1100 g (38.8 oz.) 3-Pack \| EU / US: 1827 g (64.45 oz.)
Retail Package Dimension	1-Pack: 145×130×265 mm 5.71×5.12×10.43 inches,2-Pack: 330×130×265 mm 12.99×5.12×10.43 inches,3-Pack: 380×130×265 mm 14.96×5.12×10.43 inches
Units per Carton	1-Pack: 16 2-Pack: 8 3-Pack: 4
Carton Dimension	1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches
Carton Gross Weight	1-Pack \| EU / US: 12.2 kg (26.9 lbs) 3-Pack \| EU / US: 9.6 kg (21.16 lbs) 2-Pack \| EU / US: 12 kg (26.46 lbs) 3-Pack \| EU / US: 8.2 kg (18.08 lbs)
Carton Net Weight	1-Pack \| EU / US: 10.9 kg (24.03 lbs) 3-Pack \| EU / US: 8.5 kg (18.74 lbs) 2-Pack \| EU / US: 11.5 kg (25.35 lbs) 3-Pack \| EU / US: 7.3 kg (16.09 lbs)

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.

Software Specs

Model Version
M3000 1.0
Wireless
Wi-Fi Standards	Wi-Fi 6
Max Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
Max Capacity	512
Recommended Client Upper Limit	200
Max Wi-Fi Channel Width	160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
Guest Network	2.4 GHz, 5 GHz
WPS	True
General
Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
Mesh	Cudy Mesh
Mesh Backhaul	Wireless Backhaul Wired Backhaul
Multi-Band Backhaul	True
WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network
QoS	Per-User Rate Limiting
DHCP	Address Reservation DHCP Client List Server
IP Versions	IPv4/IPv6
IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
TTL Customization	Extend Spoof Custom
IGMP	IGMP Proxy IGMP Snooping
Forwarding	Port Forwarding Port Triggering UPnP DMZ
Firewall	SPI Firewall DoS Protection Block PING
Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
DNS over TLS Providers	Cloudflare Google Quad9 Custom
Wake on LAN	True
Online Detection	True
Management
Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
Content Management	Domain Filter IP Filter
System
LED Control	True
Local Control Method	Config Web Page App Control
Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local Update App (Over the Air) Online Update
Reliability	Timed Reboot Backup and Restore
Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
