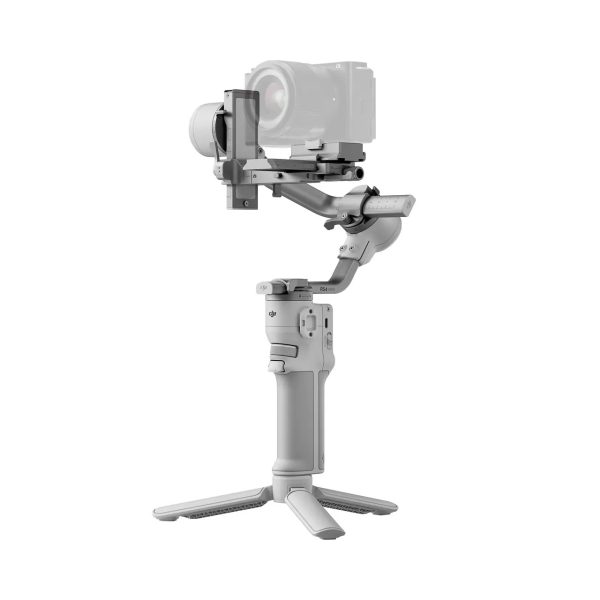

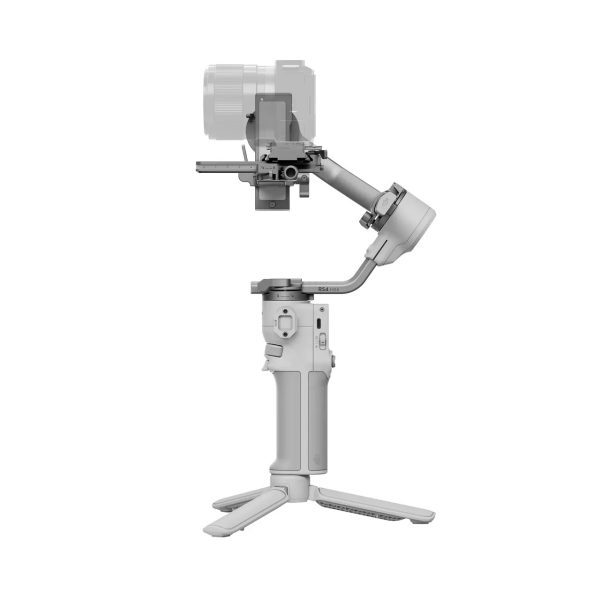

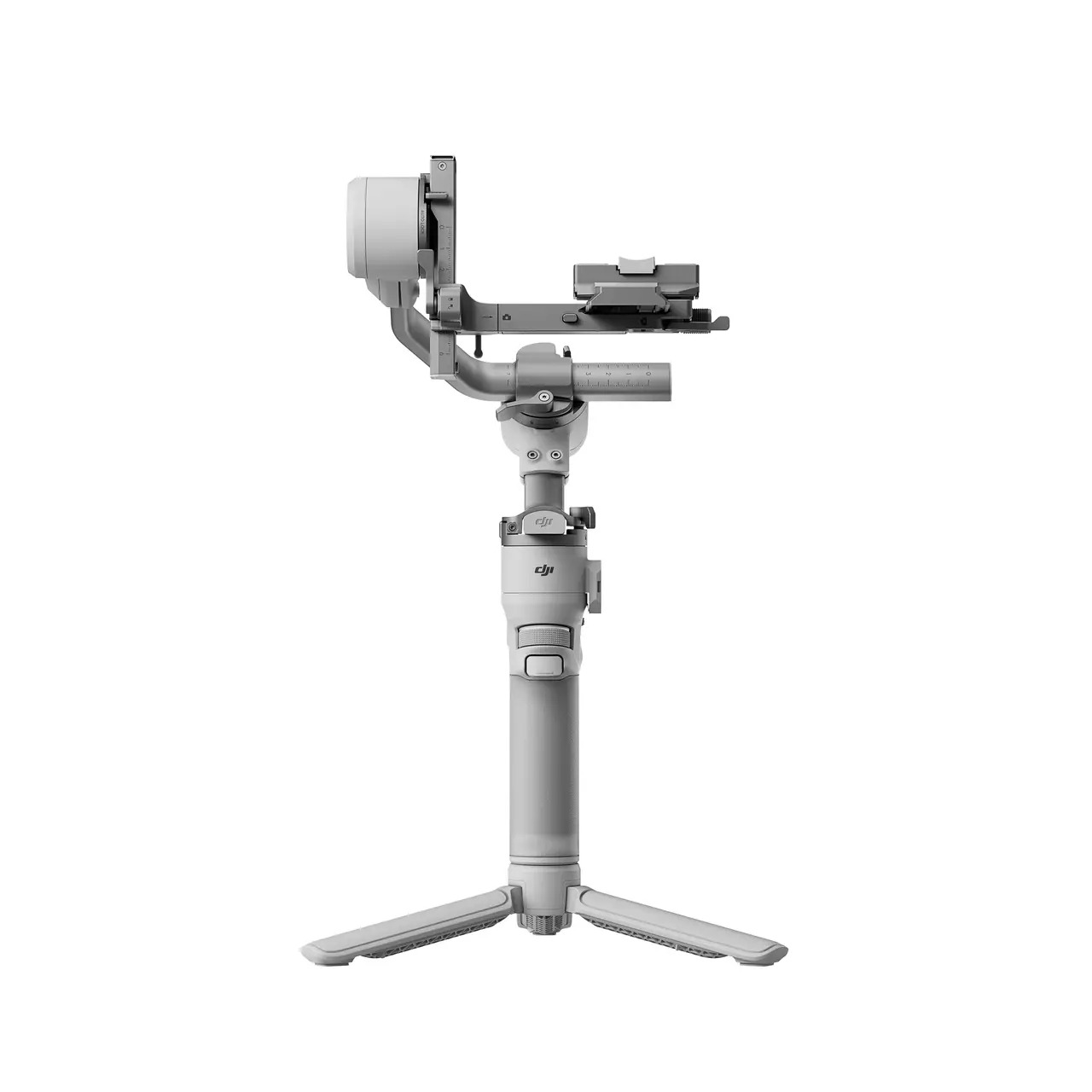

DJI RS4 Mini Handheld Camera Gimbal. Introducing DJI RS 4 Mini, the all-new compact and lightweight gimbal for content creators. Featuring automated axis locks, intelligent tracking and composition, Teflon enhanced balancing, and 3rd-gen native vertical shooting, it empowers content creators and independent commercial videographers to roll with it in a more efficient and seamless filming experience.
Features
2nd-Gen Automated Axis Locks
Newly added axis locks speed up the filming, transitioning, and storage processes. Axis arms fold flatter to save space, making it easy to fit into a bag for convenient carrying.
Intelligent Tracking and Composition
The new DJI RS Intelligent Tracking Module keeps the human subject in a consistent position within the frame, particularly useful for orbit shots, backward tracking, and fixed-position tracking.
Teflon Enhanced Balancing
Previously used on DJI’s flagship gimbals, Teflon interlayers reduce friction for smoother balancing.
3rd-Gen Native Vertical Shooting
RS 4 Mini offers the fastest switch between horizontal and vertical shooting in the RS series. All can be done in 10 seconds, perfectly suited for mobile phone viewing.
Responsive Follow Mode
In the new Responsive mode, the gimbal responds faster to hand movements upon start and stop, useful for fast orbit shots. It also retains DJI’s classic Smooth follow mode.
2kg/4.4lbs Payload for Camera and Phone
It supports a wide range of mainstream mirrorless cameras and lens combinations, lightweight vlog cams, and phones with the new Phone Holder, seamlessly adapting to different scenarios.
Lightweight Build, High Payload
Weighing only 890 g (2 lb), RS 4 Mini boasts a payload capacity of up to 2 kg (4.4 lb). It supports a wide range of mainstream mirrorless cameras and lens combinations, delivering powerful performance.*6 It can support a Sony A7 series camera with a 24-70 mm F2.8 GM II lens, along with a DJI Mic series microphone receiver*5. With high-torque motors, RS 4 Mini can retain stable shooting when zooming to max focal lengths when using the following recommended combinations without the need for rebalancing.
- Canon R5 + RF 24-70 mm F2.8
- Sony A7S3 + FE 24-70 mm F2.8 GM2
- Nikon Z7 2 + Z 24-70 mm F2.8
- Panasonic S5 + L 20-60 mm F3.5-5.6
Specifications
Key Specs
| Gimbal Design | Single Handgrip |
| Load Capacity | 0.9 to 4.4 lb / 0.4 to 2 kg |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.1 |
| Mobile App Compatible | Yes: Android & iOS App Name: RONIN |
| Mounting | 1 x 1/4″-20 Female 1 x NATO Rail |
| Weight | 2.0 lb / 890 g |
Gimbal
| Load Capacity | 0.9 to 4.4 lb / 0.4 to 2 kg |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Rotation Range | Mechanical Range Yaw (Pan): 360° Roll: 320° (-110 to 210°) Pitch (Tilt): 330° (-95 to 235°) |
| Follow Speed | Pan/Tilt/Roll: 360°/s |
Compatibility
| Camera Control | On Compatible Models |
| Camera Mounting Screw | 1x 1/4″-20 Male |
Connectivity
| Inputs/Outputs | 1x USB-C (2.5 A 9 VDC Power) 1x USB-C (Control) 1x Proprietary |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.1 |
| Mobile App Compatible | Yes: Android & iOS App Name: RONIN |
Battery
| Battery Type | 1x Built-In |
| Battery Capacity | 3100 mAh / 22.32 Wh |
| Battery Runtime | 13 Hours |
| Battery Charging Time | 2 Hours |
| Battery Chemistry | Lithium-Ion |
| Voltage | 9.0 VDC |
Power
| Operating Voltage | 7.2 VDC |
General
| Display Type | Fixed Touchscreen OLED |
| Operating Conditions | 14 to 113°F / -10 to 45°C |
| Materials | Aluminum Alloy |
| Mounting | 1 x 1/4″-20 Female 1 x NATO Rail |
| Dimensions | 13.3 x 7.2 x 6.9″ / 338 x 182 x 175 mm (without Tripod) 12.4 x 9.3 x 2.5″ / 316 x 236 x 64 mm (Folded) |
| Weight | 2.0 lb / 890 g |
