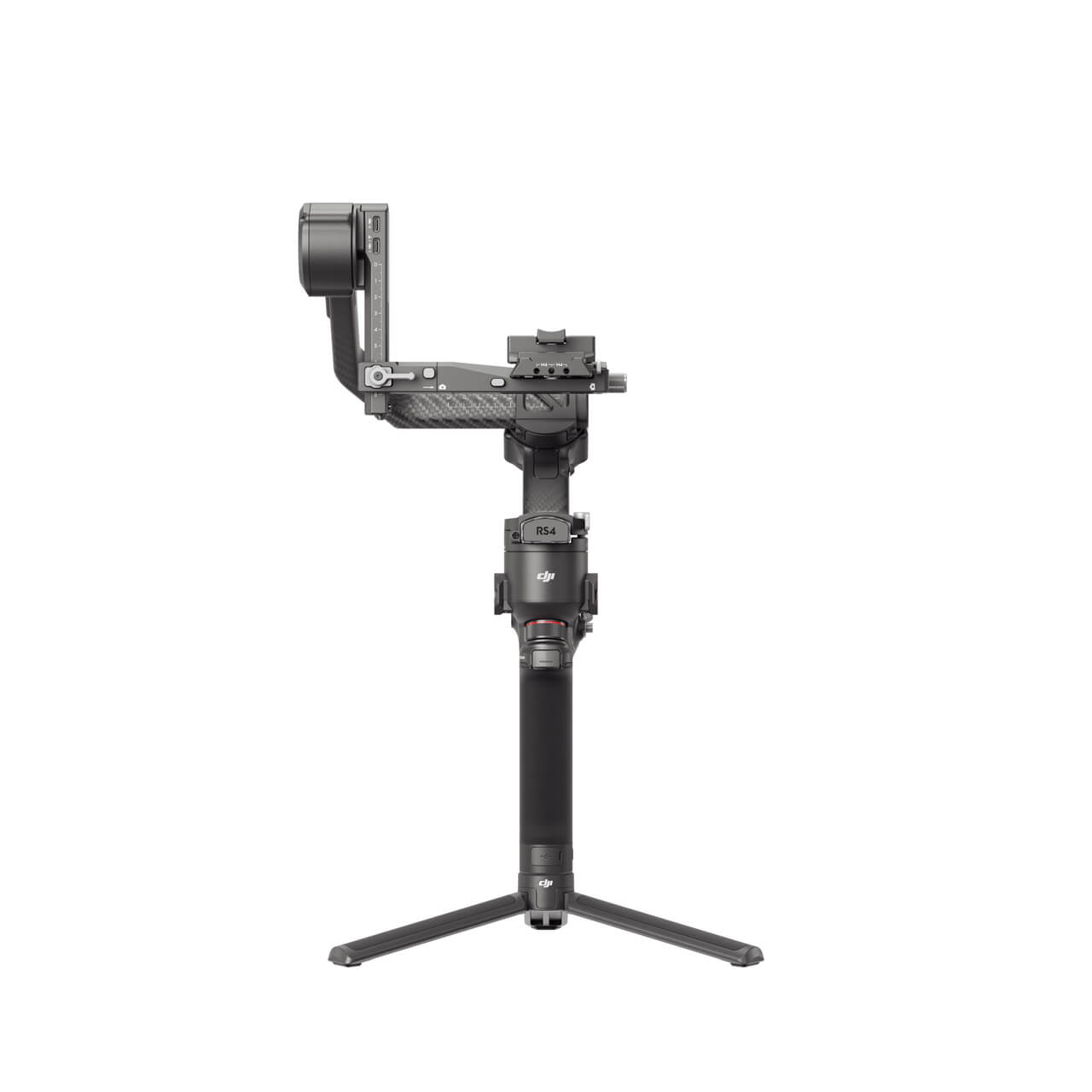

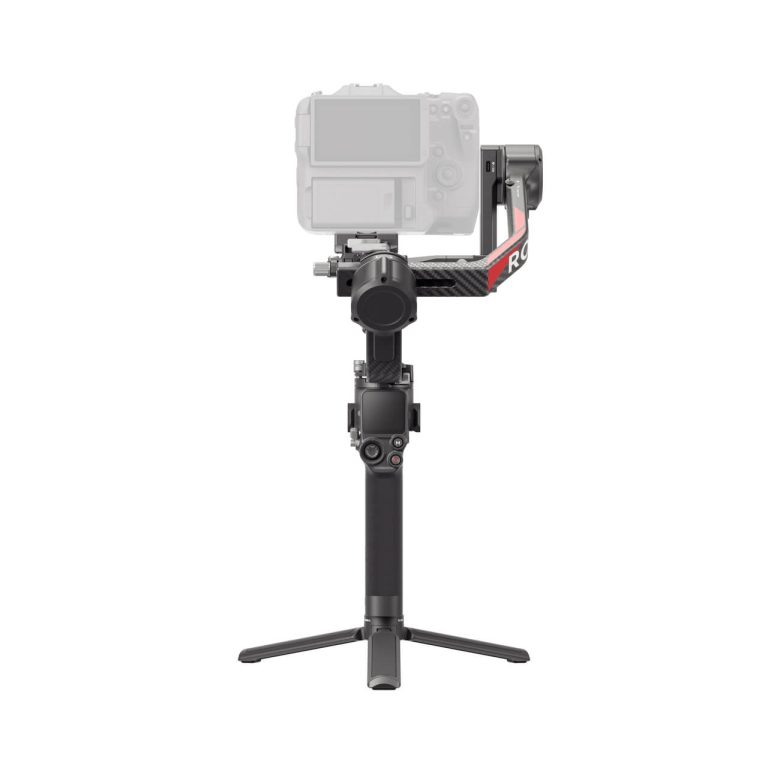

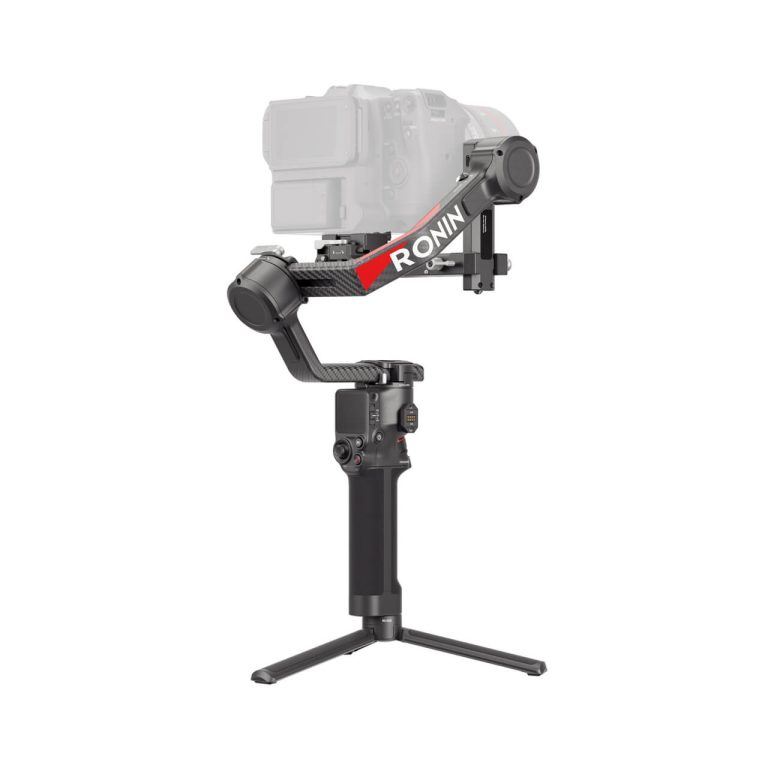

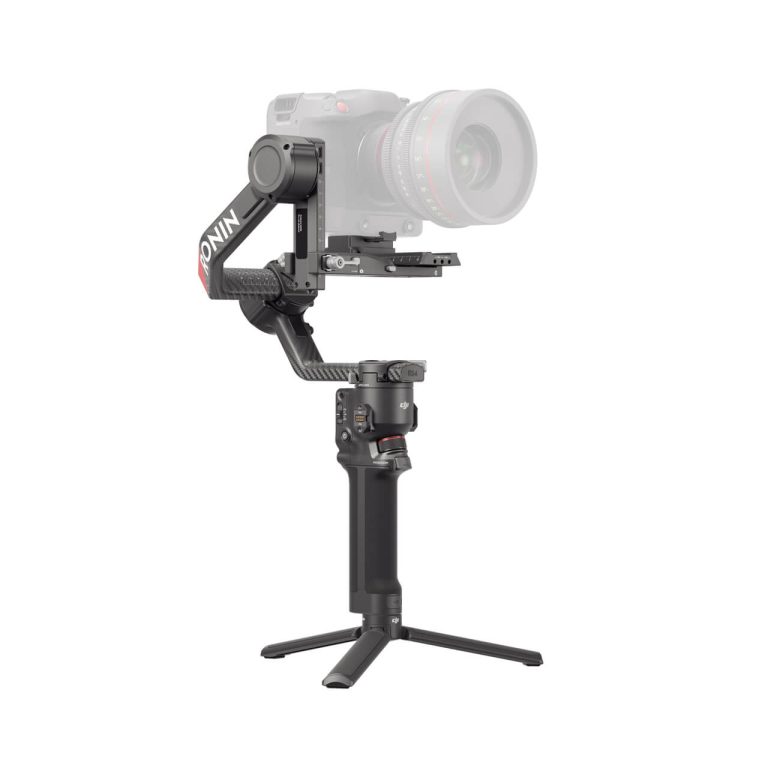

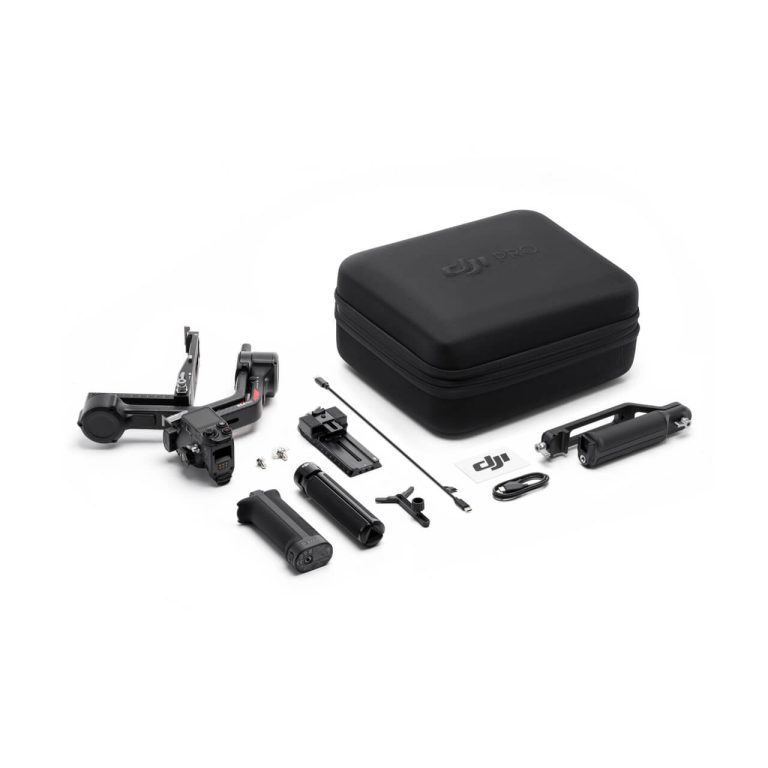

DJI RS 4 Pro Gimbal Stabilizer
DJI RS 4 Pro Gimbal Stabilizer. Enhanced operation efficiency, native vertical shooting, and an expanded accessory ecosystem make the DJI RS 4 Pro a powerful tool for the mirrorless camera shooter. The gimbal only weighs around 2.74 lb and sports a load capacity of 10 lb capable of supporting your compact camera build. Teflon-coated axes reduce friction for a smoother balancing and operating experience. Other intuitive features include a fine-tuning knob, auto-locking OLED screen, and RSA communication port for use with expanded accessories.
Features
- Lightweight Design with 10 lb Payload
- OLED Touchscreen with Auto Lock
- 2nd Gen Native Vertical Shooting
- Automated Axis Locks
- Joystick or Bluetooth Mode Switching
- Supports Wireless Transmitter, LiDAR
- Teflon-Coated Axes, ActiveTrack Pro
- 13-Hour Operation Time
Specifications
Key Specs
| Gimbal Design | Single Handgrip (Slanted) |
| Load Capacity | 9.9 lb / 4.5 kg |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS App Name: Ronin App |
| Mounting | 1 x 1/4″-20 Female 2 x NATO Rail |
| Weight | 2.73 lb / 1.24 kg |
Gimbal
| Load Capacity | 9.9 lb / 4.5 kg |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Rotation Range | Mechanical Range Yaw (Pan): 360° Pitch (Tilt): -112 to 214° Roll: -95 to 240° |
| Follow Speed | Pan/Tilt/Roll: 360°/s |
Compatibility
| Camera Control | On Compatible Models (See Full Compatibility List) |
Connectivity
| Inputs/Outputs | 3x USB-C (Control / Video) 1x USB-C (Power) |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS App Name: Ronin App |
Battery
| Battery Type | 1x Built-In |
| Battery Capacity | 1950 mAh / 30 Wh |
| Battery Runtime | 13 Hours |
| Battery Charging Time | 1.5 Hours |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Voltage | 15.4 VDC |
Power
| Operating Voltage | 15.4 VDC |
General
| Display Type | Fixed Touchscreen OLED |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Materials | Carbon Fiber |
| Mounting | 1 x 1/4″-20 Female 2 x NATO Rail |
| Dimensions | 11.1 x 10.7 x 3″ / 283 x 271 x 75 mm (Folded) 16.4 x 8.8 x 8″ / 416 x 223 x 202 mm |
| Weight | 2.73 lb / 1.24 kg |
